Product Details
Place of Origin: CHINA
Brand Name: JIUHE
Certification: ISO CE
Model Number: 70m
Payment & Shipping Terms
Minimum Order Quantity: 1
Delivery Time: 25 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 100SET
Brand: |
JIUHE |
Warranty: |
1 Year |
Condition: |
New |
Color: |
As Requested |
Keyword: |
Concrete Pump Truck |
Main Pump: |
Rexroth |
Wireless Remote Control: |
HBC |
Brand: |
JIUHE |
Warranty: |
1 Year |
Condition: |
New |
Color: |
As Requested |
Keyword: |
Concrete Pump Truck |
Main Pump: |
Rexroth |
Wireless Remote Control: |
HBC |

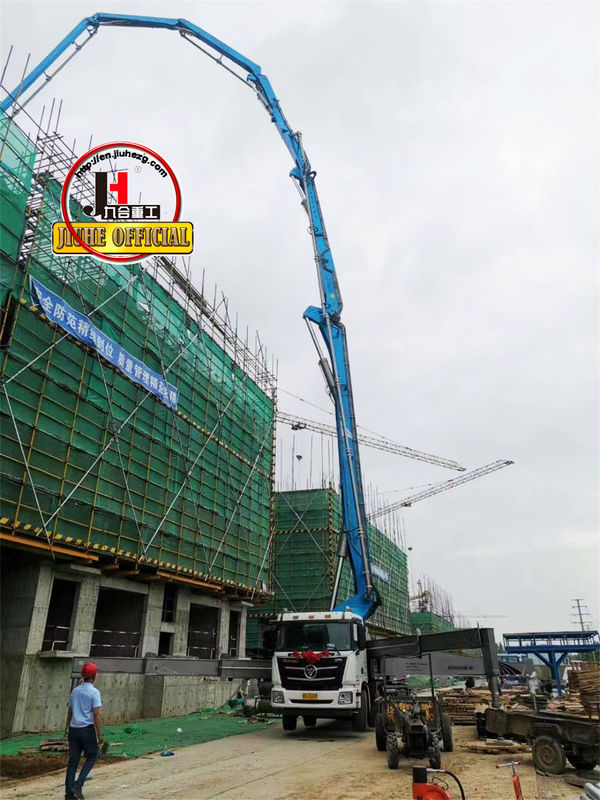

JIUHE 70m Good quality wholesale product Truck Mounted Concrete Boom Pump
1.Extremely High Pumping Efficiency: The 70-meter pump truck's efficient pumping system can rapidly
convey concrete, reducing construction project time and increasing productivity.
2.Suitable for Heavy-Duty Engineering Applications: Ideal for large-scale high-rise buildings, bridges,
tunnels, and other heavy-duty projects, it can easily handle challenging concrete pumping tasks.
3.Flexibility and Ease of Operation: The design of Jiuhe Heavy Industry's 70-meter pump truck is flexible
and user-friendly, allowing it to adapt to different work scenarios and pumping requirements. Operators
can easily control the pumping process, improving work efficiency.
4.Durability and Low Maintenance Costs: Jiuhe Heavy Industry manufactures the pump truck using
high-quality materials and advanced manufacturing processes, ensuring exceptional reliability and
durability, reducing maintenance costs and downtime.
5.Safety and Easy Maintenance: The 70-meter pump truck is equipped with advanced safety features
to ensure job site safety. Additionally, the company provides comprehensive after-sales service and
maintenance support to ensure the pump truck's smooth operation and upkeep.
| I. Chassis | ||
| 1 | Chassis Brand | Foton/Faw/Isuzu |
| 2 | Driving type | 10*4 |
| 3 | Power | 510HP |
| 4 | Steering type | Left hand drive or right hand drive |
| 5 | Emission standard | EURO 5 |
| II. Boom system | ||
| 1 | Max. Vertical height(M) | 69.3 |
| 2 | Max. Horizontal Concrete Placing radius (M) | 65.3 |
| 3 | Concrete placing depth(M) | 51.8 |
| 4 | Boom structure | 70X-6RZ |
| 5 | Rotating angle of turret | 360° |
| 6 | Length of end hose (MM) | 3000 |
| 7 | Concrete delivery pipe dia. | 125 |
| III. Electric Control System | ||
| 1 | Working voltage(V): | 24 |
| IV. Hydraulic transmission system | ||
| 1 | Type of hydraulic system | Open type |
| 2 | System working pressure (Mpa) | 32 |
| 3 | Displacement of main hydraulic oil pump (ml/r) | 260 |
| 4 | Hydraulic fuel tank capacity (l) | 880 |
| 5 | Cooling mode of hydraulic oil | Forced-air Cooling |
| VII. Pumping system | ||
| 1 | Form of concrete distribution valve | S Valve |
| 2 | Concrete cylinder | 260 |
| 3 | Maximum feeding height (MM) | 1550 |
| 4 | Hopper capacity (M3 ) | 0.65 |
| 5 | Slump of pumped concrete | 160-220 |
| 6 | Dimension of allowable maximum aggregate (MM) | 40 |
| 7 | Lubricating method | Centralized lubrication |
Development strategy
Strives for the survival by the quality, seek development by science and technology
Corporate philosophy
People-oriented, science and technology enterprise, recruiting high level scientific and
technological personnel, actively introduce advanced technology at home and abroad
JiuHe Service
As a professional company,we promise as following:
JIUHE HEAVEY INDUSTRY MACHINERY service system MAX customer experiences.
A. Pre-sales service:
1. Selecting the most suitable equipment,
2. Designing your personal machinery according to special construction demands,
3. Training your technicians to operate our equipment,
4. Providing advice to ensure equipment running well in various construction. environments,
5. Making new construction scheme if necessary.
B. Sales service:
1. Equipment delivery transport agent,
2. Equipment quality control before delivery,
3. Introduce our service system to customers.
C. After-sales service:
1. Making the first construction scheme,
2. Installing and debugging your equipment,
3. Troubleshooting on site, prompt and initiative,
4. door to door accessories and parts,
5. Opportunities to get technical communications with our engineers.
D. Value-added service:
1. Overall process and zero distance technology tracking service for key projects,
2. Carry out large maintenance business,
3. Regular equipment checking service,
4. Technology update,
4. Provide professional periodic maintenance standards for customers.
JIUHE HEAVEY INDUSTRY MACHINERY Service Commitments for sold equipment:
1. Dispatch technicians to install and debug equipment in time if necessary,
2. Provide free maintenance service for the products which have product quality problems within a year after the delivery,
3. Provide free operation and maintenance training service for users
4. Provide lifelong paid maintenance service, accessories and parts supply for the sold products.
